Featured image of post Build a Private Digital Library with calibre-web and docker
Software

Build a Private Digital Library with calibre-web and docker

Build a Provate Digital Library on Your Own Computer or Server with calibre-web and docker

Motivation

I’ve previously downloaded some eBooks, all of which are stored on the cloud drive. However, every time I want to read them on different devices, I need to download them first (even though they can be previewed on the cloud drive, I still find it better to download them and use a dedicated e-reader for a better experience). Moreover, with a growing number of eBooks, managing them on the cloud drive becomes quite chaotic. Recently, I came across the tool called “calibre-web,” which allows you to set up your own eBook library. I feel that the results are quite promising.

Prerequisites

  • docker and docker-compose
  • Domain name (second-level domain is sufficient)
  • acme.sh (generating SSL certificate)
  • nginx (reverse proxy)

Preparation

Install Docker and Docker Compose

  1. Debian-based systems can directly install docker using apt:

    1

    sudo apt-get install docker-ce

  2. Install Docker Compose:

    1

    sudo apt-get install docker-compose

    Docker Compose uses a file named docker-compose.yml to “synthesize” a docker container. docker-compose.yml is the formula for synthesizing this docker container.

Prepare Domain Name

Create a second-level domain on the website where you purchased your domain name or on your domain management website, and configure domain name resolution. For specific instructions, please refer to “Building a Personal Website (Part One): Purchasing a Personal Domain Name and Configuring Dynamic Domain Name Resolution”.

For example, if you have a primary domain name jinli.cyou, you can create a second-level domain “book.jinli.cyou” for your personal cloud network disk. Then, bind the domain name and IP address on the Alibaba Cloud domain management platform.

Use acme.sh to Generate SSL Certificates

Many online tutorials use Let’s Encrypt to generate SSL certificates, but since I have already downloaded the acme.sh tool when building this website, I will use acme.sh to generate a certificate for “cloud.jinli.cyou”. For specific instructions, please refer to “Building a Personal Website (Part Two): Building a Personal Website Using the Hugo Framework”.

The process is as follows:

  1. Find the Access key for your domain management account. You can use the previous one or obtain a new one and export the Access key as system variables Ali_Key and Ali_Secret.

  2. Use the following command to generate the certificate:

    1

    acme.sh --issue --dns dns_ali -d your.domain.com

  3. Use the following command to copy the certificate to your Nextcloud directory. For example, I created a folder named cert in the Nextcloud installation directory to store the certificate files:

    1
2
3

    acme.sh --install-cert -d your.domain.com \
        --key-file /media/calibre/cert/key.pem \
        --fullchain-file /media/calibre/cert

nginx reverse proxy configuration

Since I installed nginx when building this website, I used nginx as the reverse proxy tool for Nextcloud (although Apache is mainly used for installation instructions on the Nextcloud website).

Create a new configuration file named calibre.conf as the reverse proxy configuration file for the cloud drive in the nginx configuration directory, and write the following content:

server{
    listen 80;
    server_name book.jinli.cyou;
    return 301 https://book.jinli.cyou$request_uri;
}

server{
    listen 443 ssl;
    ssl_certificate /media/lijin/book/certs/cert.pem;
    ssl_certificate_key /media/lijin/book/certs/key.pem;
    server_name book.jinli.cyou;
    location / {
        proxy_redirect off;
        proxy_pass http://book.jinli.cyou;
        proxy_set_header Host $http_host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        client_max_body_size 1000m;
    }
}

Here, I used port 8080 as the service port for calibre-web. The SSL certificate is stored in the location specified in the previous step.

After the configuration is completed, restart the nginx service to make the modification effective:

1

sudo service nginx restart

Install calibre-web

Here we use docker-compose to install calibre-web, please refer to https://hub.docker.com/r/linuxserver/calibre-web for details.

Initialization and Settings

After installing calibre-web, we can enter the website through the browser. The url is http://0.0.0.0:8080. If nginx is set up, we can also use the domain name http://book.jinli.cyou.

The default account name and passcode for the administrator is admin and admin123. We can do the initial settings after logging in.

  1. First we need to download an empty database file metadata.db and move it to the library folder of the installation directory of calibre-web, such as /media/calibre-web/library.

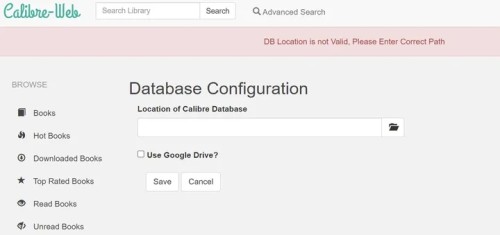

  2. Then choose /books as the database path in calibre-web. Note that the directory /books in docker is actually the directory /media/calibre-web/library on the server. Here calibre-web may still show error message because of the file access permission problem: calibre-web.

  3. To change the read/write permission, we need to enter the docker environment. The commands are

    1
2
3
4

    docker exec -it calibre_web /bin/bash
chmod 777 books
cd books
chmod 766 metadata.db

  4. After that we can do some other settings, such as server’s port, SSL certificate, etc.

Add eBook

After setting up all initial configurations, we can add eBooks to the library. And we can create different shelves for different categories of books. calibre-web-books.
